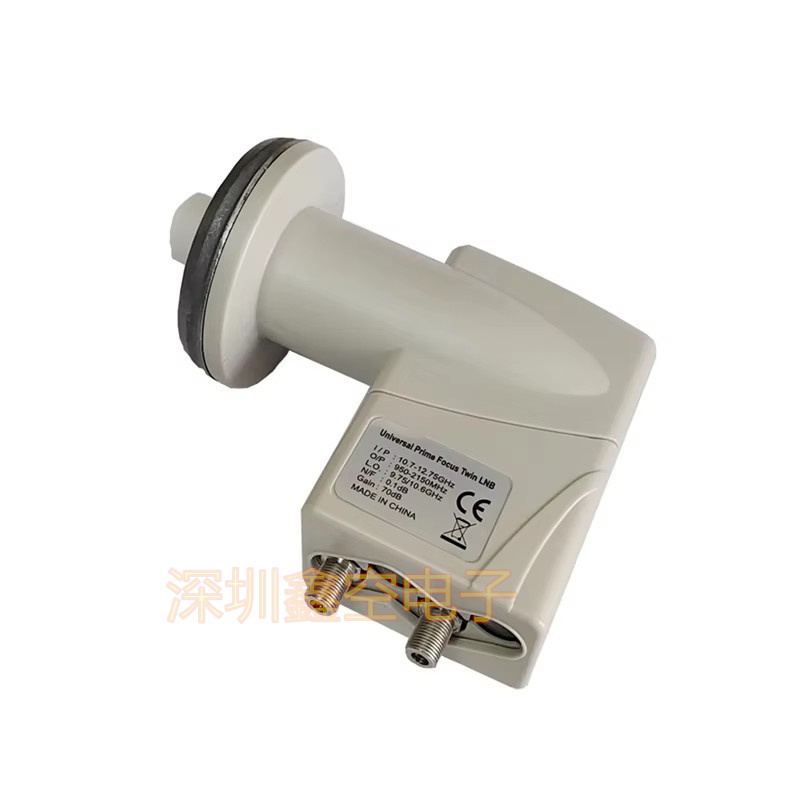

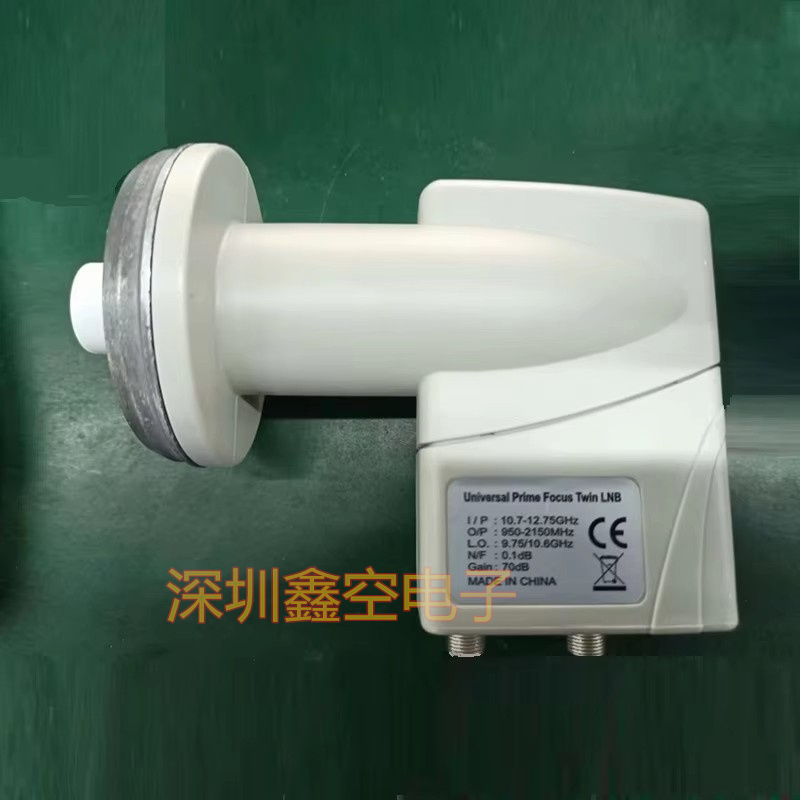

Univeral Prfme Focus Twin LNB双极化双本振双输出的KU高频头

Main Features:

• Superior Phase Noise performance, DVB-S2 (HDTV) compliant

• Excellent Cross Polarization Isolation

• Very Low Spurious Levels

• Superior Noise Figure

• Higher Conversion Gain 70DB

• Ultimate Reliability

Specification:

1.Input Frequency:

1).Low Band:10.70 GHz -11.70GHz

2).High Band:11.70 GHz -12.75GH

2.Output Frequency:

1).Low Band:950-1950MHz

2).High Band:1100-2150MHz

3.L.O. Frequency:

1).Low Band:9.75GHz(1MHz@25centigrade)

2).High Band:10.6 GHz(1MHz@25centigrade)

4.L.O. Stability:

1).Low Band:±1MHz(-40centigrade to +70centigrade)

2).High Band:±1MHz(-40centigrade to +70centigrade)

5.Noise Figure: 0.1dB

6.Conversion Gain:70db

7.Gain Flatness≤+/-2dB
